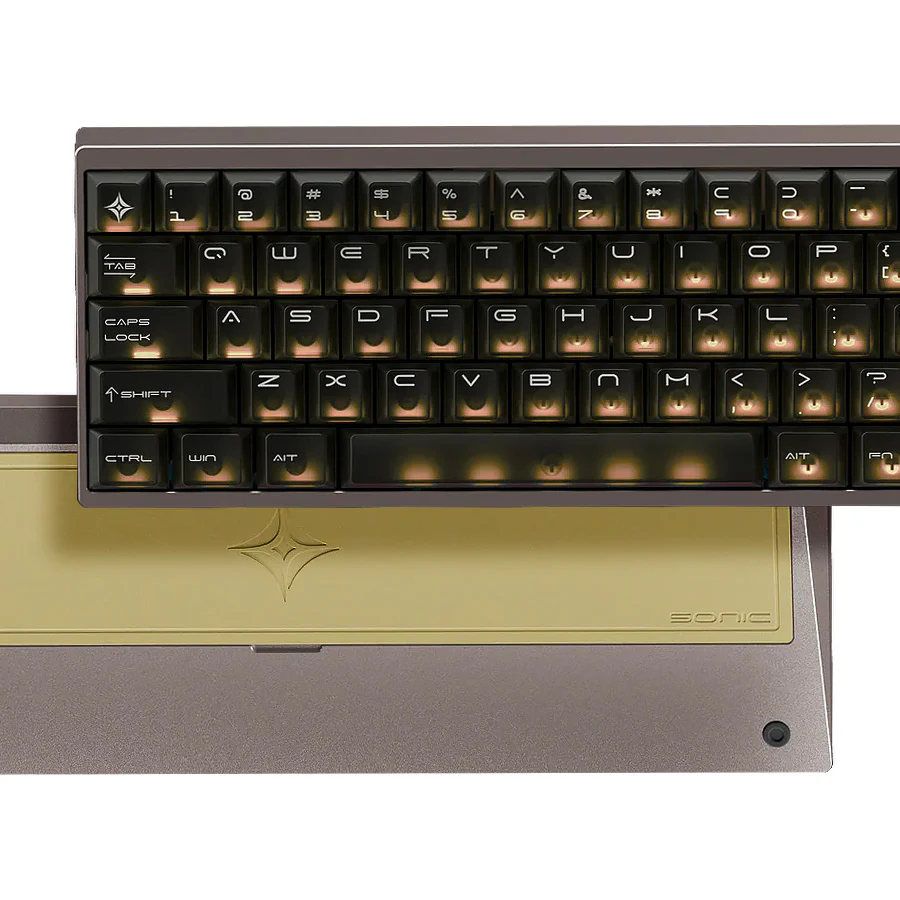

Neo65 Sonic He+ Hall Effect Custom Keyboard (OPEN BOX)
Introducing the Neo65 Sonic He+, the flagship of our magnetic switch series. Featuring Neo's proprietary magnetic switch solution, this plug-and-play custom HE keyboard delivers premium performance at an industry-leading price point, offering exceptional value right out of the box.
Optimized Gasket Structure
The silicone gasket absorbs impact for a smoother, fatigue-free feel during intense gaming. By isolating the PCB from the case, it significantly reduces the negative typing sounds common in regular hall effect keyboards. With mounting points positioned directly on the PCB, the effect on actuation accuracy caused by gasket rebound is minimized to the lowest level. This delivers a superior user experience alongside stable performance for your intensive gaming sessions.
Material & Weight
At around 1.5 kg, this behemoth ranks among the heaviest magnetic keyboards in its price, engineered to resist shaking, shifting, and deformation.
Milled from CNC aluminum and fortified with both external and internal stainless steel weights, the Neo65 Sonic delivers exceptional stability—anchoring every keystroke.
OwLab's New Nova Switch
Nova switches feature a box-styled stem for minimal travel deviation, PG-3 material and magnet bottom-out stems for thocky acoustics, and extended 20 mm springs for a snappy, bouncy return. The satisfying bottom-out sound provides clear, distinct feedback – whether you are performing rapid maneuvers or in marathon typing sessions when deadlines loom.
Type: Linear
- Bottom-Out Force: 50+10g
- Total Travel: 3.3±0.3mm
- Initial Magnetic Flux: 120+20gs
- Bottom-Out Magnetic Flux: 750+50gs
- Lubrication: Pre-Lubed
- Top Housing Material: PC
- Stem Material: POM
- Bottom Housing Material: PA (Closed-Bottom)
Carbon Fiber Plate
Flat and rigid carbon fiber shims out PCB warp when fastened with our customized stand-offs, ensuring every key feels identical, even after long sessions of competitions. Consistent feedback boosts confidence in every tap.
Internal Dampening & PET Pad
Skipping soft PE sheets, the built-in 0.05 mm PET pad stops wobble and sharpens acoustic feedback, making each keystroke crisp and lively. We also layered precision-cut plate foam and 2-layer case foam with tailored cutouts to silence unwanted hollowness without compromising sensor integrity or cooling.
HE module compatible with Neo65
For enthusiasts who already have a Neo65, we will also offer the PCB kit that allows users to simply swap magnets, internal weights, daughter-board, and cables for an easy upgrade.
Proprietary Web Configurator
Achieve rock-solid stability at 0.01 mm sensitivity – eliminating false triggers and missed inputs that can cost you the game. The advanced 8kHz polling rate combined with custom Hall Effect sensors and high-frequency MCU delivers lightning-fast 0.125ms response time, ensuring every keystroke registers the instant you intend it.
The integrated web configurator empowers you to fine-tune actuation points and dead zones for every individual key, unlocking professional features including SOCD, Rapid Trigger, and Dynamic Keystroke. Switch effortlessly between work and gaming profiles with one-key activation – optimizing your setup for any scenario.
Adjustable Actuation Point
"Your Speed, Your Rules”
Set your Actuation Point based on your preferred response speed. When set at 0.1mm, the key will instantly activate when you press it. When set at 3mm, the key needs to be fully pressed down before it's activated.
Rapid Trigger
“Keys dance at your touch”
Rapid Trigger dynamically adjusts actuation and deactivation points, activating keys the moment you press and deactivating them as soon as you release—no need to fully lift and press again as with traditional mechanical keyboards.
Rappy Snappy
Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest. When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release.
Dynamic Keystroke
4 different actions on a single key based on key position. Activate 1 up to 4 bindings on 4 different parts of the key press.The key response distance can be adjusted as needed to provide greater flexibility and customisation.
Please note: On the Anodized Purple and Anodized Green keycaps, the legends are green; on all other colors, the legends are white.
